用 Rust 实现简单 LLM 推理

在 B 站偶然刷到清华大学主办的大模型与人工智能系统训练营，果断报名参加。计划利用春节返乡时间通过实践巩固 LLM Inference 的理论知识，恰逢学校 VPN 故障无法科研，正好整理学习笔记。

关于 Rust 语言，大三时曾两度尝试入门（某圣经教材劝退警告），这次改变策略采用rustlings+官方文档双轨学习，终于突破入门难关（但也仅限于次）。

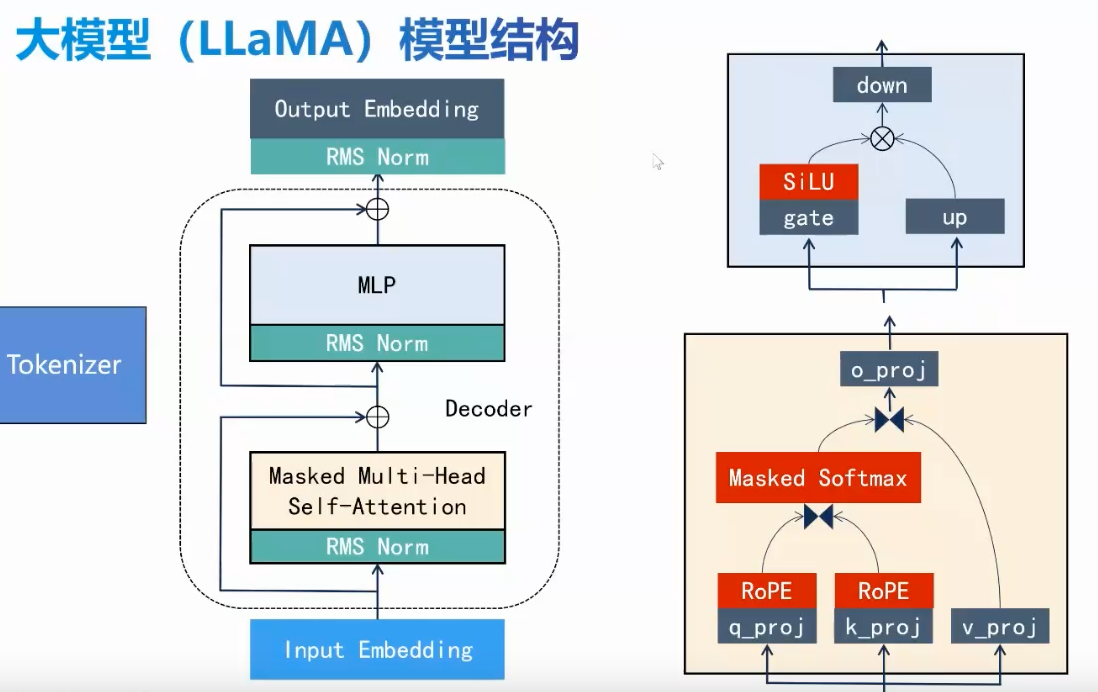

Llama 架构解析#

从核心组件拆解开始，重温经典架构设计：

Screenshot 2025-01-29 at 13.51.47

层归一化（RMS Norm）#

Llama 采用 Pre-Norm 架构，即在每层输入前执行归一化操作。相较于传统 Layer Norm：

\hat{x}_i = \frac{x_i - \mu}{\sqrt{\sigma^2 + \epsilon}}

RMSNorm 通过移除均值中心化实现计算优化：

\bar{a}_i = \frac{a_i}{\text{RMS}(\mathbf{a})} g_i,\quad \text{where}~~ \text{RMS}(\mathbf{a}) = \sqrt{\frac{1}{n} \sum_{i=1}^{n} a_i^2 + \epsilon}

其中 $g_i$ 为可学习缩放参数 gamma， $\epsilon$ 防止除零错误。

注：所有算子初步仅需实现 FP32 支持，后面可以用 generics 和 macro 来支持其它格式推理。

pub fn rms_norm(y: &mut Tensor<f32>, x: &Tensor<f32>, w: &Tensor<f32>, epsilon: f32) {
    let shape = x.shape();
    assert!(shape == y.shape());
    let feature_dim = shape[shape.len() - 1];  // d in mathematical notation

    // Calculate number of feature vectors to process
    let num_features = shape[0..shape.len()-1].iter().product();

    let _y = unsafe { y.data_mut() };
    let _x = x.data();
    let _w = w.data();

    // Process each feature vector independently
    for i in 0..num_features {
        let offset = i * feature_dim;

        // 1. Calculate Σ(x_i²)
        let sum_squares: f32 = (0..feature_dim)
            .map(|j| {
                let x_ij = _x[offset + j];
                x_ij * x_ij
            })
            .sum();

        // 2. Calculate RMS(x) = sqrt(1/d * Σ(x_i²) + ε)
        let rms = f32::sqrt(sum_squares / feature_dim as f32 + epsilon);

        // 3. Apply normalization and scaling: y_i = (w_i * x_i) / RMS(x)
        for j in 0..feature_dim {
            let idx = offset + j;
            _y[idx] = (_w[j] * _x[idx]) / rms;
        }
    }
}

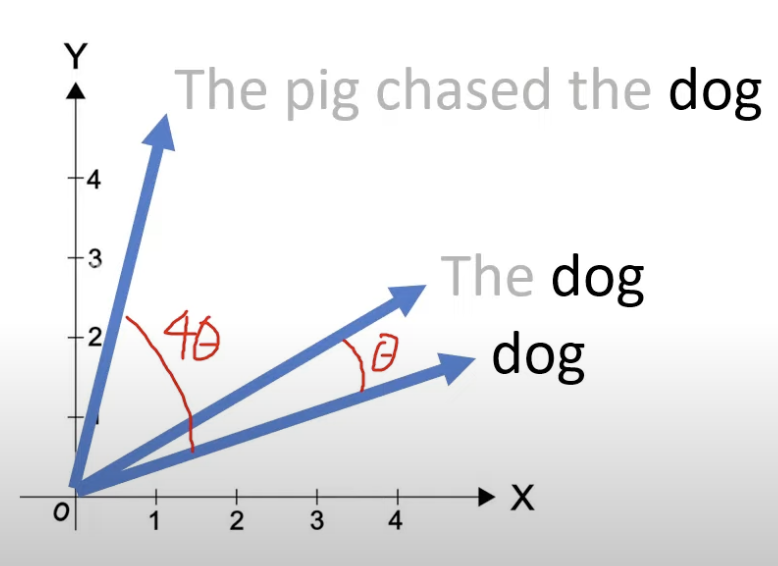

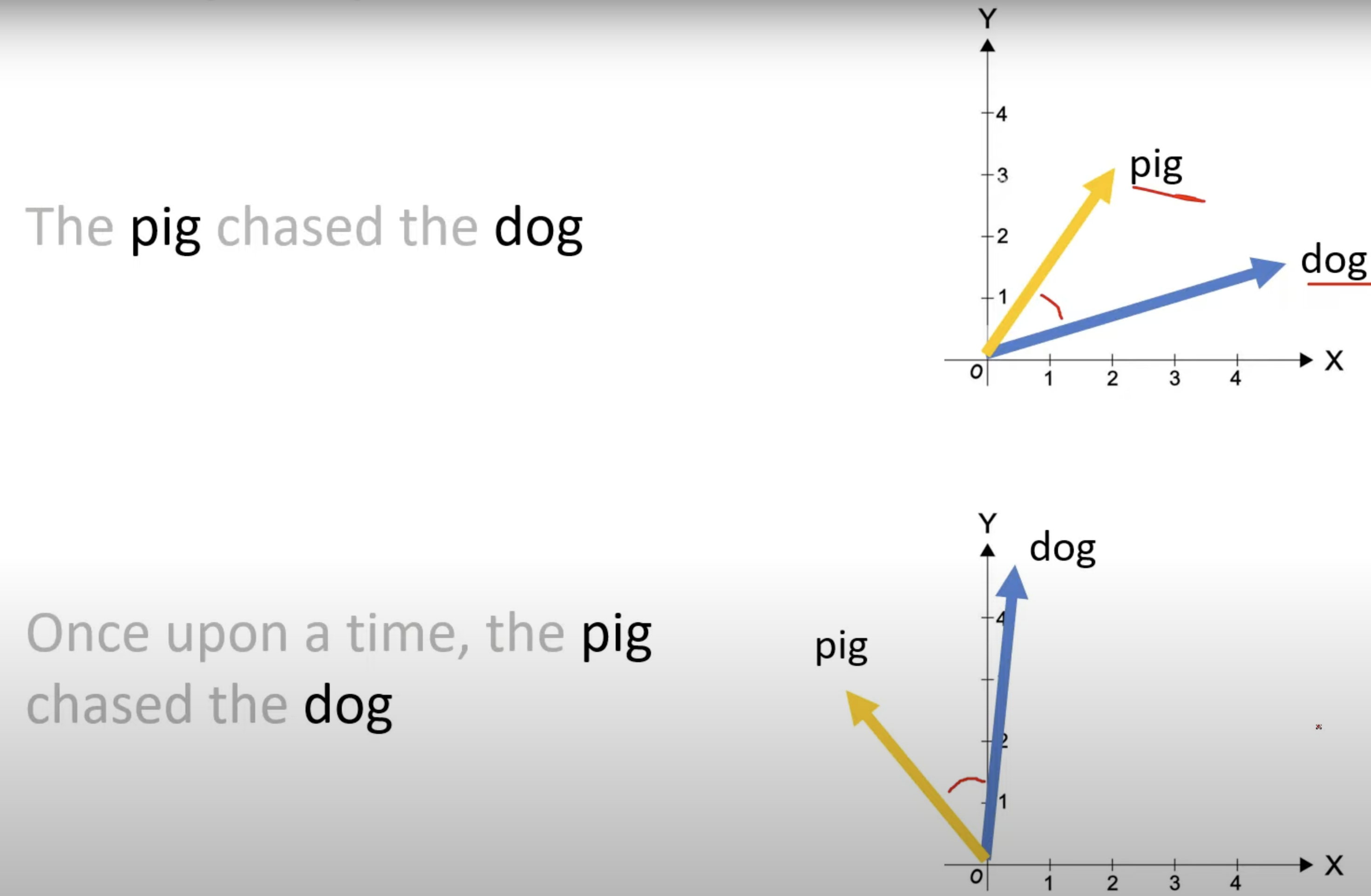

旋转位置编码 RoPE#

绝对位置编码：如通过影响 max_length 的可学嵌入向量或三角函数构建，直接加到词向量中，每个位置编码基本上是相互独立的；
相对位置编码：学习一对 token 之间的距离，需要修改注意力计算（如 T5 模型用 bias 嵌入矩阵表示相对距离，加到 self-attention 的 Q、K 矩阵中），可以拓展到任意长度的序列，推理速度较慢，难利用 KV-Cache；
Rotary Positional Embedding（RoPE）兼具有绝对位置编码和相对位置编码的优点，二维情况的公式如下：

\underbrace{f_{\{q,k\}}(\mathbf{x}_m, m)}_{\text{RoPE输出}} = \underbrace{ \begin{pmatrix} \cos m\theta & -\sin m\theta \\ \sin m\theta & \cos m\theta \end{pmatrix} }_{\text{旋转矩阵 } R(m\theta)} \underbrace{ \begin{pmatrix} W_{\{q,k\}}^{(11)} & W_{\{q,k\}}^{(12)} \\ W_{\{q,k\}}^{(21)} & W_{\{q,k\}}^{(22)} \end{pmatrix} }_{\text{线性变换矩阵 } W_{\{q,k\}}} \underbrace{ \begin{pmatrix} x_m^{(1)} \\ x_m^{(2)} \end{pmatrix} }_{\text{输入向量 } \mathbf{x}_m}

在旋转矩阵作用前，会先应用线性变换来获得 Query & Key 来保持旋转不变性。然后经过旋转矩阵，其作用是将词向量旋转 $m\theta$ 度（ $m$ 为是该 token 在句子中的绝对位置）：

更一般的形式如下，即将向量分割成多组 2D 的块（默认向量维度是偶数），然后分组对每对维度应用不同旋转角度：

f_{\{q,k\}}(\mathbf{x}_m, m) = \mathbf{R}_{\Theta,m}^d \mathbf{W}_{\{q,k\}} \mathbf{x}_m

\mathbf{R}_{\Theta,m}^d = \begin{pmatrix} \cos m\theta_1 & -\sin m\theta_1 & 0 & 0 & \cdots & 0 & 0 \\ \sin m\theta_1 & \cos m\theta_1 & 0 & 0 & \cdots & 0 & 0 \\ 0 & 0 & \cos m\theta_2 & -\sin m\theta_2 & \cdots & 0 & 0 \\ 0 & 0 & \sin m\theta_2 & \cos m\theta_2 & \cdots & 0 & 0 \\ \vdots & \vdots & \vdots & \vdots & \ddots & \vdots & \vdots \\ 0 & 0 & 0 & 0 & \cdots & \cos m\theta_{d/2} & -\sin m\theta_{d/2} \\ 0 & 0 & 0 & 0 & \cdots & \sin m\theta_{d/2} & \cos m\theta_{d/2} \end{pmatrix}

优化计算效率，上述计算等价于：

\mathbf{R}_{\Theta,m}^d \mathbf{x} = \begin{pmatrix} x_1 \\ x_2 \\ x_3 \\ x_4 \\ \vdots \\ x_{d-1} \\ x_d \end{pmatrix} \otimes \begin{pmatrix} \cos m\theta_1 \\ \cos m\theta_1 \\ \cos m\theta_2 \\ \cos m\theta_2 \\ \vdots \\ \cos m\theta_{d/2} \\ \cos m\theta_{d/2} \end{pmatrix} + \begin{pmatrix} -x_2 \\ x_1 \\ -x_4 \\ x_3 \\ \vdots \\ -x_{d-1} \\ x_d \end{pmatrix} \otimes \begin{pmatrix} \sin m\theta_1 \\ \sin m\theta_1 \\ \sin m\theta_2 \\ \sin m\theta_2 \\ \vdots \\ \sin m\theta_{d/2} \\ \sin m\theta_{d/2} \end{pmatrix}

Screenshot 2025-01-29 at 15.29.32

这里的实现是仓库中已经给出的：

// RoPE: Rotary Positional Embedding
pub fn rope(y: &mut Tensor<f32>, start_pos: usize, theta: f32) {
    let shape = y.shape();
    assert!(shape.len() == 3);
    let seq_len = shape[0];
    let n_heads = shape[1];
    let d = shape[2];
    let data = unsafe { y.data_mut() };
    for tok in 0..seq_len {
        let pos = start_pos + tok;
        for head in 0..n_heads {
            // 遍历维度对
            for i in 0..d / 2 {
                let a = data[tok * n_heads * d + head * d + i];
                let b = data[tok * n_heads * d + head * d + i + d / 2];
                let freq = pos as f32 / theta.powf((i * 2) as f32 / d as f32);
                let (sin, cos) = freq.sin_cos();
                // 应用旋转矩阵
                data[tok * n_heads * d + head * d + i] = a * cos - b * sin;
                data[tok * n_heads * d + head * d + i + d / 2] = b * cos + a * sin;
            }
        }
    }
}

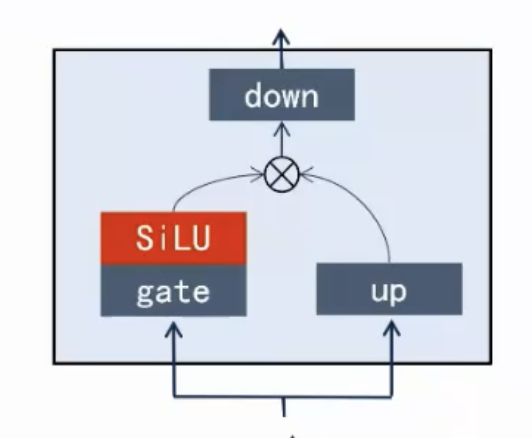

FFN（MLP）#

MLP 结构（src/model.rs）：

fn mlp(
    residual: &mut Tensor<f32>,
    hidden_states: &mut Tensor<f32>,
    gate: &mut Tensor<f32>,
    up: &mut Tensor<f32>,
    w_up: &Tensor<f32>,
    w_down: &Tensor<f32>,
    w_gate: &Tensor<f32>,
    rms_w: &Tensor<f32>,
    eps: f32,
) {
    // 1. hidden = rms_norm(residual)
    OP::rms_norm(hidden_states, residual, rms_w, eps);

    // 2. gate = hidden @ gate_weight.T
    OP::matmul_transb(gate, 0., hidden_states, w_gate, 1.0);

    // 3. up = hidden @ up_weight.T
    OP::matmul_transb(up, 0., hidden_states, w_up, 1.0);

    // 4. act = gate * sigmoid(gate) * up (SwiGLU)
    OP::swiglu(up, gate);

    // 5. residual = residual + up @ down_weight.T
    OP::matmul_transb(residual, 1.0, up, w_down, 1.0);
}

算子#

整个流程中涉及的基本计算操作如图：

MatMul（scr/operators.rs）：

// C = beta * C + alpha * A @ B^T
// hint: You don't need to do an explicit transpose of B
pub fn matmul_transb(c: &mut Tensor<f32>, beta: f32, a: &Tensor<f32>, b: &Tensor<f32>, alpha: f32) {
    // C_xy = beta * C_xy + alpha * Σ(A_xk * B_yk)  k=1..inner_dim
    let shape_a = a.shape();
    let shape_b = b.shape();
    let (a_rows, b_rows) = (shape_a[0], shape_b[0]);
    let inner = shape_a[1];

    let _c = unsafe { c.data_mut() };
    let _a = a.data();
    let _b = b.data();

    // 1. using slice to scale C
    _c.iter_mut().for_each(|val| *val *= beta);

    // 2. using slice to matmul
    for x in 0..a_rows {
        // get current row of A
        let a_row = &_a[x * inner..(x + 1) * inner];

        for y in 0..b_rows {
            // get current row of B (equivalent to column of B^T)
            let b_row = &_b[y * inner..(y + 1) * inner];

            let sum: f32 = a_row.iter()
                .zip(b_row.iter())
                .map(|(&a, &b)| a * b)
                .sum();

            _c[x * b_rows + y] += alpha * sum;
        }
    }

}

SwiGLU（scr/operators.rs）

$SiLU(x) * gate$ , 其中 $SiLU(x) = x * sigmoid(x)$

// hint: this is an element-wise operation
pub fn swiglu(y: &mut Tensor<f32>, x: &Tensor<f32>) {
    let len = y.size();
    assert!(len == x.size());

    let _y = unsafe { y.data_mut() };
    let _x = x.data();

    for i in 0..len {
        _y[i] = _y[i] * _x[i] / (1. + f32::exp(-_x[i]));
    }
}

从 safetensor 中读取#

（src/params.rs）

use crate::config::LlamaConfigJson;
use crate::tensor::Tensor;
use num_traits::Num;
use safetensors::SafeTensors;

pub struct LLamaParams<T: Num> {
    // token_id to embedding lookup table
    pub embedding_table: Tensor<T>, // (vocab_size, dim)
    // decoder layer
    pub rms_att_w: Vec<Tensor<T>>, // (hidden_size, ) x layers
    pub wq: Vec<Tensor<T>>,        // (n_heads * head_size, hidden_size) x layers
    pub wk: Vec<Tensor<T>>,        // (n_kv_heads * head_size, hidden_size) x layers
    pub wv: Vec<Tensor<T>>,        // (n_kv_heads * head_size, hidden_size) x layers
    pub wo: Vec<Tensor<T>>,        // (hidden_size, n_heads * head_size) x layers
    // ffn layer
    pub rms_ffn_w: Vec<Tensor<T>>, // (hidden_size, ) x layers
    pub w_up: Vec<Tensor<T>>,      // (intermediate_size, hidden_size) x layers
    pub w_gate: Vec<Tensor<T>>,    // (intermediate_size, hidden_size) x layers
    pub w_down: Vec<Tensor<T>>,    // (hidden_size, intermediate_size) x layers
    // output
    pub rms_out_w: Tensor<T>, // (hidden_size, )
    pub lm_head: Tensor<T>,   // (vocab_size, dim)
}

trait GetTensorFromSafeTensors<P: Num> {
    fn get_tensor_from(tensors: &SafeTensors, name: &str) -> Result<Tensor<P>, &'static str>;
}

impl GetTensorFromSafeTensors<f32> for f32 {
    fn get_tensor_from(tensors: &SafeTensors, name: &str) -> Result<Tensor<f32>, &'static str> {
        let tensor_view = tensors.tensor(name).map_err(|e| {
            assert!(matches!(e, safetensors::SafeTensorError::TensorNotFound(_)));
            "Tensor not found"
        })?;

        let data = match tensor_view.dtype() {
            safetensors::Dtype::F32 => tensor_view.data()
                .chunks_exact(4)
                .map(|b| f32::from_le_bytes([b[0], b[1], b[2], b[3]]))
                .collect(),
            _ => return Err("Unsupported data type"),
        };

        Ok(Tensor::new(data, &tensor_view.shape().to_vec()))
    }
}

macro_rules! get_tensor_vec {
    ($tensors:expr, $pattern:literal, $layers:expr) => {{
        (0..$layers)
            .map(|i| {
                let name = format!($pattern, i);
                f32::get_tensor_from($tensors, &name).unwrap()
            })
            .collect::<Vec<_>>()
    }};
}

impl LLamaParams<f32> {
    pub fn from_safetensors(safetensor: &SafeTensors, config: &LlamaConfigJson) -> Self {
        let embedding_table = if config.tie_word_embeddings {
            f32::get_tensor_from(safetensor, "lm_head.weight").unwrap()
        } else {
            f32::get_tensor_from(safetensor, "model.embed_tokens.weight").unwrap()
        };

        let n_layers = config.num_hidden_layers;

        Self {
            embedding_table,
            rms_att_w: get_tensor_vec!(safetensor, "model.layers.{}.input_layernorm.weight", n_layers),
            wq: get_tensor_vec!(safetensor, "model.layers.{}.self_attn.q_proj.weight", n_layers),
            wk: get_tensor_vec!(safetensor, "model.layers.{}.self_attn.k_proj.weight", n_layers),
            wv: get_tensor_vec!(safetensor, "model.layers.{}.self_attn.v_proj.weight", n_layers),
            wo: get_tensor_vec!(safetensor, "model.layers.{}.self_attn.o_proj.weight", n_layers),
            rms_ffn_w: get_tensor_vec!(safetensor, "model.layers.{}.post_attention_layernorm.weight", n_layers),
            w_up: get_tensor_vec!(safetensor, "model.layers.{}.mlp.up_proj.weight", n_layers),
            w_gate: get_tensor_vec!(safetensor, "model.layers.{}.mlp.gate_proj.weight", n_layers),
            w_down: get_tensor_vec!(safetensor, "model.layers.{}.mlp.down_proj.weight", n_layers),
            rms_out_w: f32::get_tensor_from(safetensor, "model.norm.weight").unwrap(),
            lm_head: f32::get_tensor_from(safetensor, "lm_head.weight").unwrap(),
        }
    }
}

KV-Cache 机制#

fp16 (参数占 2 字节) 推理时 KV 缓存占用计算：

2\times 2 \times n\_layer\times seq\_{len}\times n\_head\times head\_dim \times batch

随着序列长度增加，性能呈指数级下降（注意最新 token 生成的增量计算）：

Screenshot 2025-01-29 at 17.08.44

对应参数use_cache: true与max_position_embeddings: 4096，后者决定模型的最大上下文窗口。

推理优化方案#

分组查询注意力（GQA）#

通过多组 Q 共享单组 KV 实现内存优化（需满足头数整除关系）：

fn self_attention(
    hidden_states: &mut Tensor<f32>, // (seq, n_kv_h * n_groups * dqkv)
    att_scores: &mut Tensor<f32>,    // (n_kv_h, n_groups, seq, total_seq)
    q: &Tensor<f32>,                 // (seq, n_kv_h * n_groups * dqkv)
    k: &Tensor<f32>,                 // (total_seq, n_kv_h * dqkv)
    v: &Tensor<f32>,                 // (total_seq, n_kv_h * dqkv)
    n_kv_h: usize,
    n_groups: usize,
    seq_len: usize,
    total_seq_len: usize,
    dqkv: usize,
) {
    assert!(k.shape()[0] >= total_seq_len && v.shape()[0] >= total_seq_len);
    assert!(q.shape()[0] == seq_len && q.shape()[1] == n_kv_h * n_groups && q.shape()[2] == dqkv);
    let _a = unsafe { att_scores.data_mut() };
    let _q = q.data();
    let _k = k.data();
    let _v = v.data();
    let sqrt = (dqkv as f32).sqrt();

    // attn_score = Q @ K^T / sqrt(dim)
    for q in 0..n_kv_h * n_groups {
        for seq in 0..seq_len {
            for t_seq in 0..total_seq_len {
                let mut sum = 0.0;
                for d in 0..dqkv {
                    sum += _q[seq * n_kv_h * n_groups * dqkv + q * dqkv + d]
                        * _k[t_seq * n_kv_h * dqkv + q / n_groups * dqkv + d];
                }
                _a[q * seq_len * total_seq_len + seq * total_seq_len + t_seq] = sum / sqrt;
            }
        }
    }

    // attn = softmax(score)
    OP::masked_softmax(att_scores);

    // x = attn @ V
    let _a = att_scores.data();
    let _h = unsafe { hidden_states.data_mut() };
    for q in 0..n_kv_h * n_groups {
        for seq in 0..seq_len {
            for d in 0..dqkv {
                let mut sum = 0.0;
                for t_seq in 0..total_seq_len {
                    sum += _a[q * seq_len * total_seq_len + seq * total_seq_len + t_seq]
                        * _v[d + q / n_groups * dqkv + t_seq * n_kv_h * dqkv];
                }
                _h[seq * n_kv_h * n_groups * dqkv + q * dqkv + d] = sum;
            }
        }
    }
}

Batching 技术、会话管理、对话回滚等暂时没有精力实现，后面仅作科普总结。

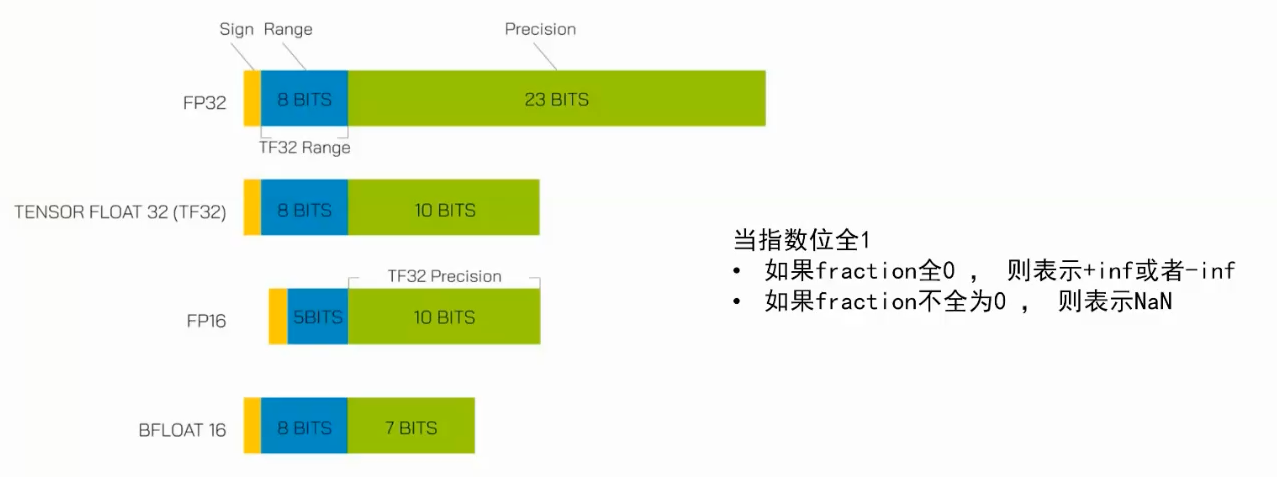

混合精度推理#

常用的有 FP16、BF16, 前者精度和 TF32 一样，后者表示范围和 FP32 一样，精度则低一些，TF32 兼具 FP32 的表示范围和 FP16 的精度，不过需要有 tensor core 硬件支持。

Screenshot 2025-01-30 at 21.26.35

注意，下面的精度敏感操作需保留 FP32：

RoPE 的三角函数计算
RMS Norm 的指数运算
Softmax 数值稳定性

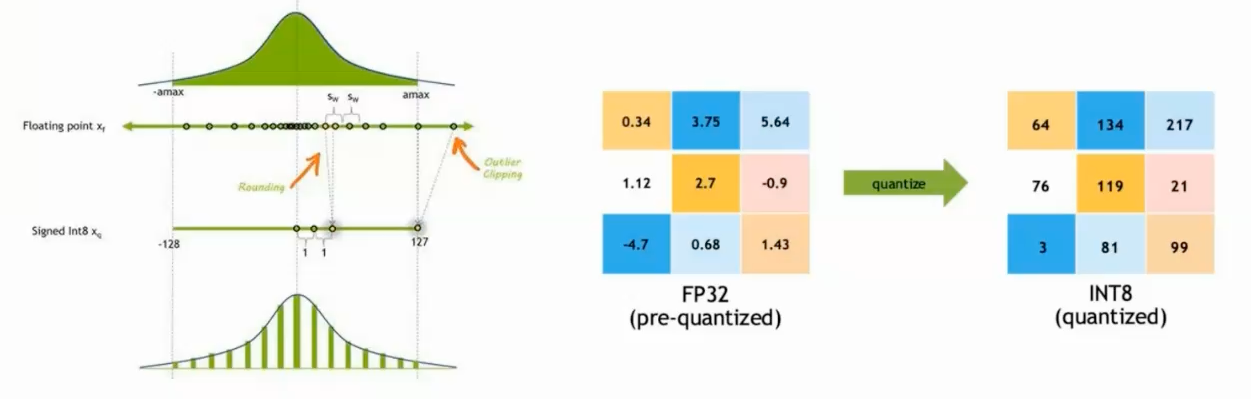

量化推理#

通过数据类型映射实现：

计算加速（需要硬件支持低精度指令）
显存优化（fp16 仅需 fp32 的 50% 空间，甚至是 int8、int4...）

Screenshot 2025-01-30 at 21.52.25

进阶优化方向#

MoE 架构：动态路由的 MLP 优化

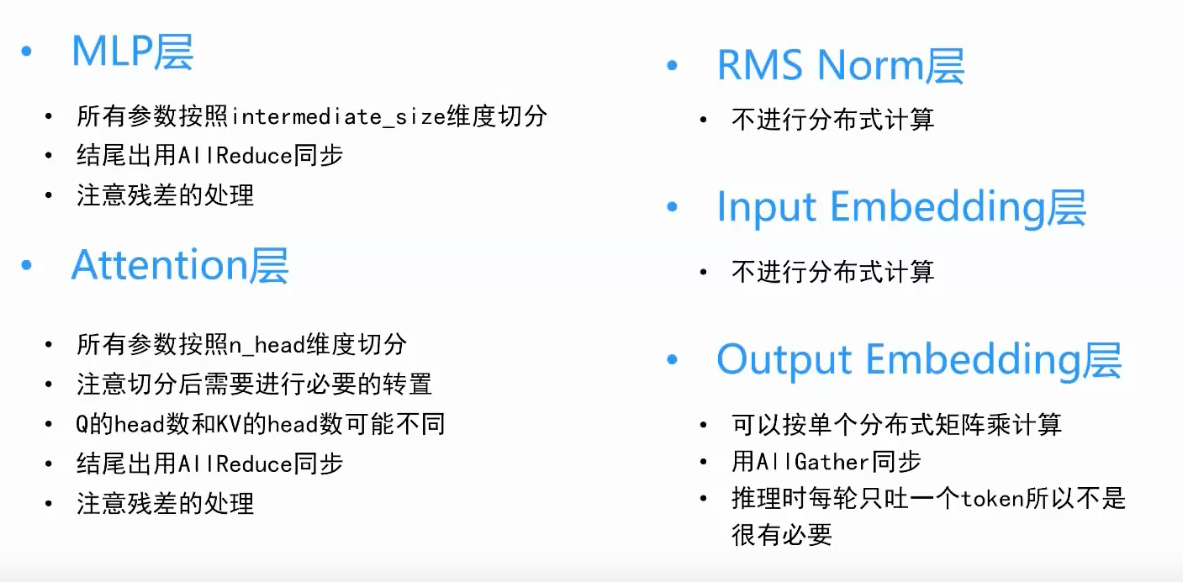

分布式推理：
- 数据并行：参数全拷贝，提升吞吐
- 流水线并行：层间切分，通信开销敏感
- 张量并行：参数分布式存储，需 AllGather/AllReduce 同步

Screenshot 2025-01-30 at 22.47.10

总结#

本次训练营以硬核实践打通 LLM 推理优化的技术脉络，很值得后面有时间的时候继续推进实现，最近事情超多，这里就先草草收个尾 🥲
